Dig. Caliper 300mm 0.05mm Acc. S/stell 0.01mm Res.
Dig. Caliper 300mm 0.05mm Acc. S/stell 0.01mm Res.
Prices include VAT
R 6,495.20
Ex VAT: R 5,648.00

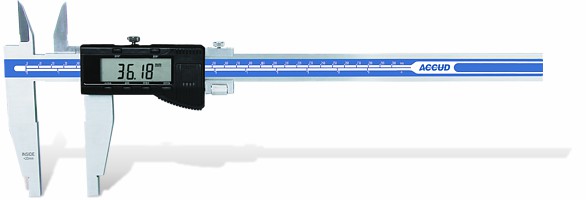

Long Jaw Digital Caliper
300 mm SERIES 119-12
300 mm SERIES 119-12
Manufacturer Cat No: 119-012-12
Range: 0 mm - 300 mm
Resolution: 0,01 mm or 0.0005 in
Accuracy: ±0,05 mm
Electronic Caliper with extended jaws
Professional quality workshop electronic caliper with measuring range of 0 - 300 mm | 12' (in) and measuring resolution 0,01mm / 0.0005'. A USB data output slot makes measurement recording possible to a computer. Data cable code 100-15.
When using the caliper for inside measurements with the long jaws, add 20mm as engraved on the jaw end. See measurement explaind as 'w' in the specifications tab.
Made of stainless steel.
Features at a glance
- Resolution: 0.01mm / 0.0005'
- Buttons: on/off, zero, mm/inch, ABS, data preset
- Data output (cable code:100-15)
- 100 mm jaw length
- Made of stainless steel

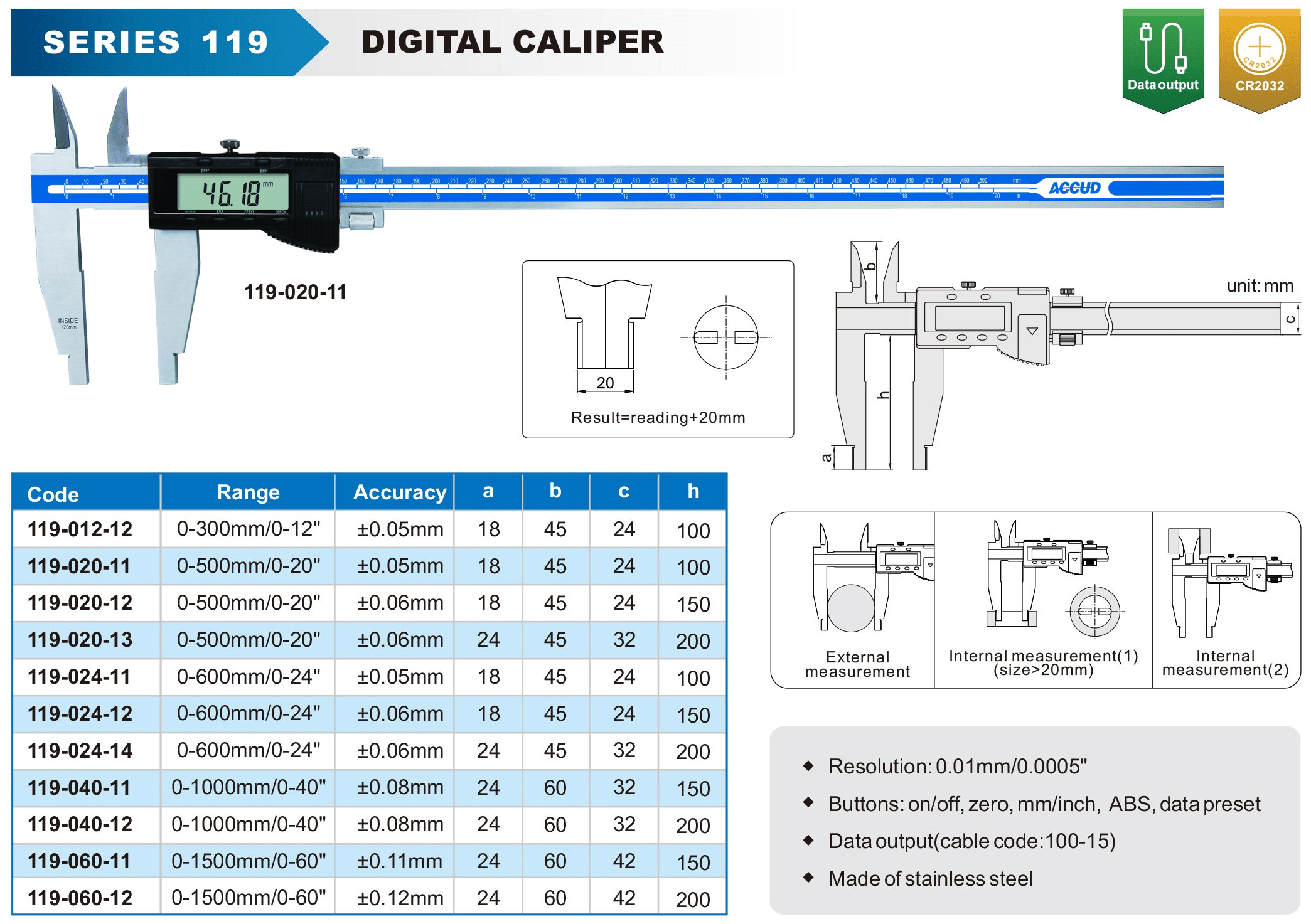

Technical parameters:
| Description | Spec |
| Measurement range: | 0-300mm / 12 ' |
| The length of the jaws h: | 100 mm |
| Resolution: | 0.01 mm | 0.0005 ' |
| Accuracy: | ± 0.05 mm |

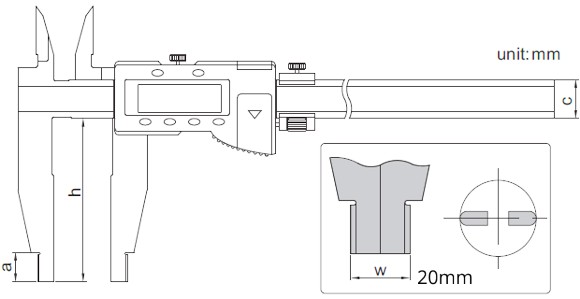

| Jaw marking: | for internal measurements add 20mm |
| Dimension a: | 12 mm |
| Dimension c: | 24 mm |
| Dimension w: | 20 mm |
| ABS function | YES |
| Button Off / On: | YES |
| ZERO button: | YES |
| mm / inch switch: | YES |
| Data output socket: | YES (Cable code 100-15) |
| Lock type: | screw |
| Construction: | stainless steel |
